Manufacturer, Exporter & Supplier of Titanium Gr 5 Nuts

Titanium Gr 5 Nuts

Titanium Gr 5 Nuts are high-strength fastening components manufactured from Ti-6Al-4V alloy, widely used in applications where strength-to-weight ratio, corrosion resistance, and thermal stability are critical. These nuts conform to international standards such as ASTM B348, DIN, and ISO specifications, ensuring compatibility across global engineering systems. Designed for demanding environments, they are extensively used in aerospace assemblies, marine equipment, and high-performance automotive systems.

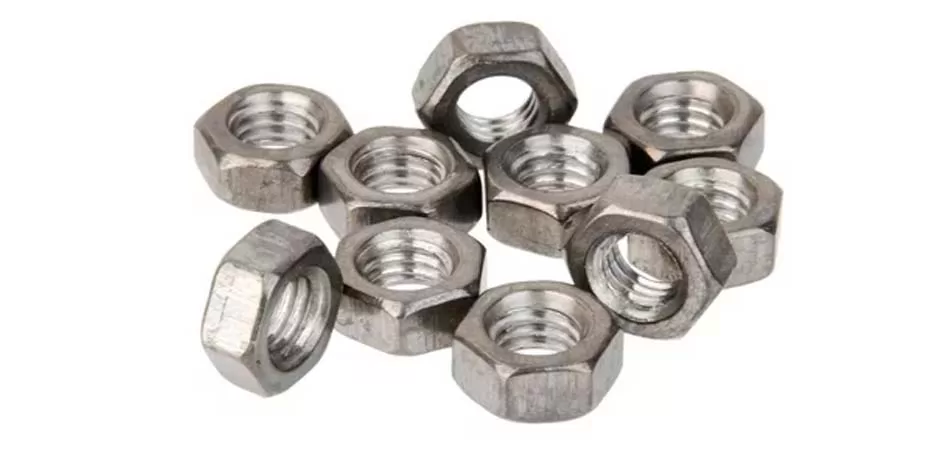

Titanium Gr 5 Nuts Manufacturer

The primary advantage of Titanium Gr 5 Nuts lies in their ability to deliver exceptional tensile strength while maintaining nearly 40% lower weight compared to steel alternatives. This makes them ideal for applications where reducing structural load without compromising performance is essential.

KK Fasteners supplies these precision-engineered nuts to international clients across industries, with full material traceability and compliance documentation supporting each batch.

Technical Specification List Of Titanium Gr 5 Nuts

Parameter Specification
Material Titanium Grade 5 (Ti-6Al-4V)
Standards ASTM B348, DIN 934, ISO 4032, ASME B18.2.2
Size Range M3 to M64 / 1/8" to 2"
Thread Type Metric, UNC, UNF, BSW
Type Variants Hex Nuts, Heavy Hex Nuts, Lock Nuts, Jam Nuts
Surface Finish Natural Titanium Finish, Passivated
Tensile Strength ~900 MPa
Hardness 30–36 HRC
Temperature Resistance Up to 400°C

Chemical Composition Of Titanium Gr 5 Nuts

Titanium Gr 5
C
Ti
N
Fe
H
O
V
Al
0.10 max
90 min
0.05 max
0.40 max
0.015 max
0.20 max
3.5-4.5
5.5-6.75 max

Mechanical Properties Of Titanium Gr 5 Nuts

Density
Melting Point
Yield Strength (0.2%Offset)
Tensile Strength
Elongation
4.43 g/cm3
1632 °C (2970 °F)
Psi – 128000 , MPa – 880
Psi – 138000 , MPa – 950
14 %

Equivalent Grades of Titanium Gr 5 Nuts

STANDARD
UNS
WERKSTOFF NR.
Titanium Gr 5
R56400
3.7165

Titanium Grade 5 Hex Nuts Dimension Chart

Hex Nut Dimensions

All measurements in millimeters

Nominal Size or Basic Major Thread Diameter
F
G
H
Width Across Flats
Width Across Corners
Thickness
Basic
Max
Min
Max
Min
Basic
Max
Min
1/4
.2500
1/2
.500
.488
.577
.556
15/64
.250
.218
5/16
.3125
9/16
.562
.546
.650
.622
19/64
.314
.280
3/8
.3750
11/16
.688
.669
.794
.763
23/64
.377
.341
7/16
.4375
3/4
.750
.728
.866
.830
27/64
.441
.403
1/2
.5000
7/8
.875
.850
1.010
.969
31/64
.504
.464
9/16
.5625
15/16
.938
.909
1.083
1.037
35/64
.568
.526
5/8
.6250
1-1/16
1.062
1.031
1.227
1.175
39/64
.631
.587
3/4
.7500
1-1/4
1.250
1.212
1.443
1.382
47/64
.758
.710
7/8
.8750
1-7/16
1.438
1.394
1.660
1.589
55/64
.885
.833
1
1.0000
1-5/8
1.325
1.575
1.876
1.796
63/64
1.012
.956
1-1/8
1.1250
1-13/16
1.812
1.756
2.093
2.002
1-7/64
1.139
1.079
1-1/4
1.2500
2
2.000
1.938
2.309
2.209
1-7/32
1.251
1.187
1-3/8
1.3750
2-3/16
2.188
2.119
2.526
2.416
1-11/32
1.378
1.460
1-1/2
1.5000
2-3/8
2.375
2.300
2.742
2.622
1-15/32
1.505
1.433
1-5/8
1.6250
2-9/16
2.562
2.481
2.959
2.828
1-19/32
1.632
1.556
1-3/4
1.7500
2-3/4
2.750
2.662
3.175
3.035
1-23/32
1.759
1.679
2
2.0000
3-1/8
3.125
3.025
3.608
3.449
1-31/32
2.013
1.925
2-1/4
2.2500
3-1/2
3.500
3.388
4.041
3.862
2-13/64
2.251
2.155
2-1/2
2.5000
3-7/8
3.875
3.750
4.474
4.275
2-29/64
2.505
2.401
2-3/4
2.7500
4-1/4
4.250
4.112
4.907
4.688
2-45/64
2.759
2.647
3
3.0000
4-5/8
4.625
4.475
5.340
5.102
2-61/64
3.013
2.893
3-1/4
3.2500
5
5.000
4.838
5.774
5.515
3-3/16
3.252
3.124
3-1/2
3.5000
5-3/8
5.375
5.200
6.207
5.928
3-7/16
3.506
3.370
3-3/4
3.7500
5-3/4
5.750
5.562
6.640
6.341
3-11/16
3.670
3.616
4
4.0000
6-1/8
6.125
5.925
7.073
6.755
3-15/16
4.014
3.862

Range of Titanium Gr 5 Nuts

Icon

Titanium Gr 5 Coupling Nuts

Icon

Titanium Gr 5 Heavy Hex Nuts

Icon

Titanium Gr 5 Hex Cap Nuts

Icon

Titanium Gr 5 Hex Flange Nuts

Icon

Titanium Gr 5 Hex Nuts

Icon

Titanium Gr 5 Hex Weld Nuts

Icon

Titanium Gr 5 Jam Nuts

Icon

Titanium Gr 5 Square Nuts

Icon

Titanium Gr 5 T Nuts

Icon

Titanium Gr 5 Nylock Nuts

Icon

Titanium Gr 5 Lock Nuts

Icon

Titanium Gr 5 Square Thin Nuts

Icon

Titanium Gr 5 Square Weld Nuts

Icon

Titanium Gr 5 Acorn Nuts

Icon

Titanium Gr 5 Lifting Eye Nuts

Icon

Titanium Gr 5 Wing Nuts

Icon

Titanium Gr 5 T-Slot Nuts

Icon

Titanium Gr 5 Nylock Jam Nuts

Icon

Titanium Gr 5 K Lock Nuts

Icon

Titanium Gr 5 2 Way Lock Nuts

Icon

Titanium Gr 5 Slotted Castle Nuts

Icon

Titanium Gr 5 Dome Nuts

Icon

Titanium Gr 5 Hex Machine Screw Nuts

Icon

Titanium Gr 5 Hex Lock Nuts Nylon Insert

Icon

Titanium Gr 5 Hex Jam Nylon Lock Nuts

Icon

Titanium Gr 5 Cap Nuts

Icon

Titanium Gr 5 Top Lock Nuts

Icon

Titanium Gr 5 Pin-Lock Nuts

Icon

Titanium Gr 5 Castle Nuts

Icon

Titanium Gr 5 Flange Nuts Serrated

Icon

Titanium Gr 5 Machine Hex Nuts

Icon

Titanium Gr 5 Finished Hex Nuts

Icon

Titanium Gr 5 Rivet Nuts

Icon

Titanium Gr 5 Slotted Hex Nut

Icon

Titanium Gr 5 Acme Hex Nuts

Icon

Titanium Gr 5 Flexloc Nuts

Icon

Titanium Gr 5 Reversible Locknuts

Icon

Titanium Gr 5 Panel Nut

Icon

Titanium Gr 5 Conelock Nut

Icon

Titanium Gr 5 Self Clinching Nuts

Icon

Titanium Gr 5 Domed Cap Nuts

Icon

Titanium Gr 5 Imperial Thread Nuts

Icon

Titanium Gr 5 Imperial Thread Nylock Nuts

Icon

Titanium Gr 5 Sleeve Nuts

Icon

Titanium Gr 5 Thin Nuts

Icon

Titanium Gr 5 Nuts Cage Nuts

Icon

Titanium Gr 5 Industrial Nuts

Icon

Titanium Gr 5 Imperial Nuts

Icon

Titanium Gr 5 Insert Nuts

Icon

Titanium Gr 5 Round Nuts

Icon

Titanium Gr 5 Flanged Nuts

Different Types of Titanium Gr 5 Nuts

  • Titanium Gr 5 Flanged Nuts
  • Titanium Gr 5 Hex Nuts
  • Titanium Gr 5 Square Nuts
  • Titanium Gr 5 T Nuts
  • Titanium Gr 5 Nylock Nuts
  • Titanium Gr 5 Lock Nuts
  • Titanium Gr 5 Heavy Hex Nuts
  • Titanium Gr 5 Jam Nuts
  • Titanium Gr 5 Coupling Nuts
  • Titanium Gr 5 Hex Cap Nuts
  • Titanium Gr 5 Hex Flange Nuts
  • Titanium Gr 5 Hex Weld Nuts
  • Titanium Gr 5 Square Thin Nuts
  • Titanium Gr 5 Square Weld Nuts
  • Titanium Gr 5 Acorn Nuts
  • Titanium Gr 5 Lifting Eye Nuts
  • Titanium Gr 5 Wing Nuts
  • Titanium Gr 5 T-Slot Nuts
  • Titanium Gr 5 Nylock Jam Nuts
  • Titanium Gr 5 K Lock Nuts
  • Titanium Gr 5 9 Way Lock Nuts
  • Titanium Gr 5 All Metal Lock Nuts
  • Titanium Gr 5 Slotted Castle Nuts
  • Titanium Gr 5 19 Point Flange Nuts
  • Titanium Gr 5 Lug Nuts
  • Titanium Gr 5 Open Lug Nuts
  • Titanium Gr 5 Dome Nuts
  • Titanium Gr 5 Hex Machine Screw Nuts
  • Titanium Gr 5 Hex Lock Nuts Nylon Insert
  • Titanium Gr 5 Hex Jam Nuts
  • Titanium Gr 5 Hex Jam Nylon Lock Nuts
  • Titanium Gr 5 Cap Nuts
  • Titanium Gr 5 Prevailing Torque Lock Nuts
  • Titanium Gr 5 Top Lock Nuts
  • Titanium Gr 5 Pin-Lock Nuts
  • Titanium Gr 5 Castle Nuts
  • Titanium Gr 5 Flange Nuts SerSSted
  • Titanium Gr 5 Machine Hex Nuts
  • Titanium Gr 5 Finished Hex Nuts
  • Titanium Gr 5 Forged Eye Nut
  • Titanium Gr 5 Rivet Nuts
  • Titanium Gr 5 Slotted Hex Nuts
  • Titanium Gr 5 Acme Hex Nuts
  • Titanium Gr 5 Anco Locknuts
  • Titanium Gr 5 Flexloc Nuts
  • Titanium Gr 5 Reversible Lock Nuts
  • Titanium Gr 5 Panel Nut
  • Titanium Gr 5 Poly Nut
  • Titanium Gr 5 Conelock Nut
  • Titanium Gr 5 Self Clinching Nuts
  • Titanium Gr 5 Domed Cap Nuts
  • Titanium Gr 5 Imperial Thread Nuts
  • Titanium Gr 5 Imperial Thread Nylock Nuts
  • Titanium Gr 5 Sleeve Nuts
  • Titanium Gr 5 Thin Nuts
  • Titanium Gr 5 Weld Nuts
  • Titanium Gr 5 High Nuts
  • Titanium Gr 5 Cage Nuts
  • Titanium Gr 5 Security Nuts
  • Titanium Gr 5 Imperial Nuts
  • Titanium Gr 5 Industrial Nuts
  • Titanium Gr 5 Miscellaneous Nuts
  • Titanium Gr 5 Insert Nuts
  • Titanium Gr 5 Knurled Nuts
  • Titanium Gr 5 Round Nuts

Key Technical Features

  • High Strength-to-Weight Ratio — Offers tensile strength up to 900 MPa while being significantly lighter than alloy steel, reducing structural load in critical assemblies.
  • Superior Corrosion Resistance — Performs reliably in marine, chemical, and chloride-rich environments due to the formation of a stable oxide layer.
  • Thermal Stability — Maintains mechanical integrity at temperatures up to 400°C, suitable for high-heat industrial applications.
  • Fatigue Resistance — Engineered for cyclic loading conditions, reducing failure risk in dynamic systems like aerospace structures.
  • Precision Threading — Manufactured with tight tolerances in compliance with ISO and DIN standards, ensuring accurate fit and load distribution.
  • Non-Magnetic Properties — Suitable for sensitive electronic and medical equipment where magnetic interference must be avoided.
  • Galling Resistance (Controlled) — Surface treatments and lubrication compatibility reduce thread galling during installation.
  • Biocompatibility — Safe for medical-grade applications due to non-toxic and inert material properties.

Industry Applications

Titanium Gr 5 Nuts are used in high-performance applications where strength, corrosion resistance, and weight reduction are critical factors.

  • Aerospace Assemblies — Used in aircraft structural joints, engine components, and landing gear systems requiring lightweight strength.
  • Marine Equipment — Applied in offshore platforms and ship components exposed to saltwater corrosion.
  • Automotive Racing — Secures high-performance engine and suspension systems where weight savings enhance speed and efficiency.
  • Chemical Processing Plants — Used in reactors and piping systems handling aggressive chemicals.
  • Medical Implants & Devices — Suitable for surgical instruments and implants due to biocompatibility.
  • Oil & Gas Infrastructure — Used in subsea and high-pressure applications where corrosion resistance is essential.
  • Power Generation — Installed in turbines and heat exchangers exposed to elevated temperatures.

Manufacturing & Quality Assurance

Titanium Gr 5 Nuts are typically produced through precision CNC machining and cold forming processes, followed by threading and finishing operations. Each batch undergoes strict quality checks, including dimensional inspection using calibrated gauges, hardness testing, and surface finish verification.

Material traceability is maintained from raw material sourcing to final dispatch, ensuring compliance with ASTM and ISO standards. KK Fasteners follows structured quality control procedures aligned with ISO 9001 certification, ensuring consistent product performance across global shipments. Additional testing such as ultrasonic inspection or chemical composition verification can be conducted upon request.

Icon

Wide Range of Quality Products

Explore our comprehensive range of products, ensuring you find the perfect solution for your specific requirements.

Icon

Competitive Pricing and Cost Savings

Save money without compromising on quality, thanks to our competitive prices and cost-effective options.

Icon

Exceptional Customer Service

Personalized assistance, prompt responses, and a commitment to meeting your needs, making your purchase process seamless.

Send us your Requirement for Titanium Gr 5 Nuts

We can assure you one of best prices in the Industry. We respond to all enquiries with in 4-8 hours on all business days. Send us your requirement on inquiry@kkfasteners.com
Send Us Your Requirement
Contact

Titanium Gr 5 Nuts - FAQs

Titanium Grade 5 nuts are high-strength fasteners made from Ti-6Al-4V alloy, offering an excellent strength-to-weight ratio, corrosion resistance, and thermal stability. They are commonly used in aerospace, marine, and industrial applications where durability and performance are critical.

Yes, Ti-6Al-4V nuts provide excellent corrosion resistance due to the formation of a stable oxide layer on the surface. This protects them against seawater, chlorides, and many industrial chemicals, making them suitable for aggressive environments.

Titanium fasteners, including Grade 5 nuts, typically conform to standards such as ASTM B348, DIN 934, ISO 4032, and ASME B18.2.2. These standards ensure dimensional accuracy, material consistency, and global compatibility.

Grade 5 titanium nuts are ideal for high-strength, load-bearing applications, while Grade 2 is better suited for environments requiring superior corrosion resistance with lower mechanical stress. Selection depends on load requirements and exposure conditions.

A reliable supplier should offer ISO-certified production, full material traceability, adherence to ASTM/DIN standards, and proven export experience. KK Fasteners supports global clients with documented quality assurance and consistent supply.
