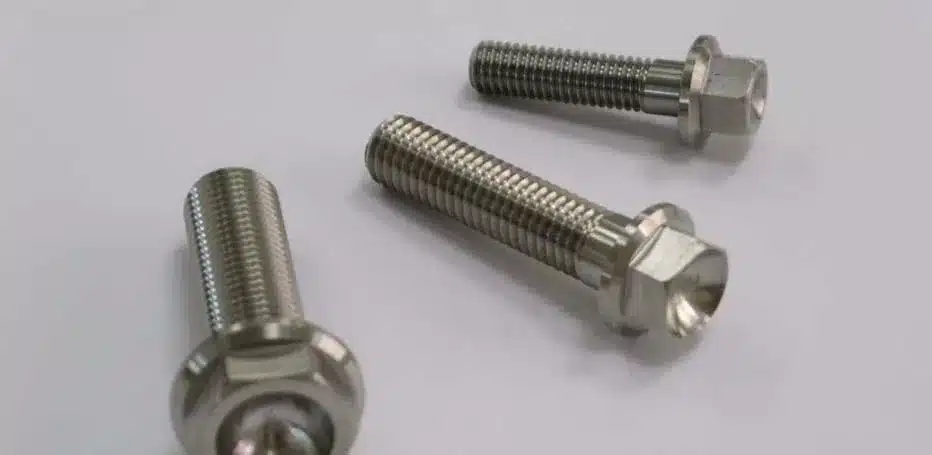

Titanium Gr 5 Bolts are high-performance fastening components manufactured from Ti-6Al-4V alloy, known for its exceptional strength-to-weight ratio, corrosion resistance, and thermal stability. These bolts are widely used in aerospace assemblies, marine engineering, chemical processing plants, and high-load industrial applications where conventional steel fasteners fail under stress or environmental exposure. Conforming to standards such as ASTM B348, ASTM F468, DIN, and ISO specifications, they offer reliable mechanical performance under both static and dynamic loading conditions.
In precision-driven industries, material consistency and dimensional accuracy directly impact safety and longevity. Titanium Gr 5 Bolts provide tensile strengths exceeding 900 MPa while maintaining nearly 40% lower weight than alloy steel alternatives. KK Fasteners manufactures and supplies these bolts with full material traceability and inspection documentation, supporting projects across global markets where compliance and reliability are non-negotiable.
| Parameter | Specification |
|---|---|
| Material | Titanium Grade 5 (Ti-6Al-4V) |
| Standards | ASTM B348, ASTM F468, DIN 931, DIN 933, ISO 4014, ISO 4017 |
| Size Range | M3 to M64 / 1/8" to 2" |
| Thread Type | Metric, UNC, UNF, BSW |
| Length | Up to 500 mm |
| Finish | Natural, Anodized, Polished |
| Types | Hex Bolts, Socket Head Bolts, Stud Bolts, Custom Bolts |
| Tensile Strength | 900 – 950 MPa |
| Yield Strength | 830 MPa (min) |
| Hardness | ~36 HRC |
| Titanium Gr 5 | C | Ti | N | Fe | H | O | V | Al |
| 0.1 max | 99.2 min | 0.03 max | 0.3 max | 0.015 max | 0.25 max | – | – |
| Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| 4.5 g/cm3 | 1665 °C (3030 °F) | Psi – 39900 , MPa – 275 | Psi – 49900 , MPa – 344 | 20 % |
| STANDARD | UNS | WERKSTOFF NR. |
| Titanium Gr 5 | R50400 | 3.7035 |
All measurements in millimeters
NOMINAL SIZE (D) |
BODY DIAMETER |
BOLT HEAD THICKNESS |
ACROSS THE FLATS |
ACROSS CORNERS |
||||
|---|---|---|---|---|---|---|---|---|
D (MAX) |
D (MIN) |
H (MAX) |
H (MIN) |
F (MAX) |
F (MIN) |
C (MAX) |
C (MIN) |
|
m10 |
10.00 |
9.78 |
6.63 |
6.17 |
17.00 |
15.73 |
18.48 |
17.77 |
m12 |
12.00 |
11.73 |
7.76 |
4.24 |
19.00 |
17.73 |
20.78 |
20.03 |
m14 |
14.00 |
13.73 |
9.09 |
8.51 |
22.00 |
20.67 |
24.25 |
23.35 |
m16 |
16.00 |
15.73 |
10.32 |
9.68 |
24.00 |
23.67 |
27.71 |
26.75 |
m20 |
20.00 |
19.67 |
12.88 |
12.12 |
30.00 |
29.16 |
34.64 |
32.95 |
m24 |
24.00 |
23.67 |
15.44 |
14.56 |
36.00 |
35.00 |
41.57 |
39.55 |
m30 |
30.00 |
29.67 |
19.48 |
17.92 |
46.00 |
45.00 |
53.12 |
50.85 |
m36 |
36.00 |
35.61 |
23.38 |
21.63 |
55.00 |
53.80 |
63.51 |
60.79 |
m42 |
42.00 |
41.38 |
26.97 |
25.03 |
65.00 |
62.90 |
75.06 |
71.71 |
m48 |
48.00 |
47.38 |
31.07 |
28.93 |
75.00 |
72.60 |
86.60 |
82.76 |
m56 |
56.00 |
55.26 |
36.2 |
33.80 |
85.00 |
82.20 |
98.15 |
93.71 |
m64 |
64.00 |
63.26 |
41.32 |
38.68 |
95.00 |
91.80 |
109.70 |
104.65 |
m72 |
72.00 |
71.26 |
46.45 |
43.55 |
105.00 |
101.40 |
121.24 |
115.60 |
m80 |
80.00 |
79.26 |
51.58 |
48.42 |
115.00 |
111.00 |
132.72 |
126.54 |
m90 |
90.00 |
89.13 |
57.74 |
54.26 |
130.00 |
125.50 |
150.11 |
143.07 |
m100 |
90.00 |
99.13 |
63.9 |
60.10 |
145.00 |
140.00 |
167.43 |
159.60 |
| MM THREADS AS PER IS 1363/67 | ||||||||||
| APPROXIMATE WEIGHT IN KGS FOR 100 NOS | ||||||||||
| LENGTH | DIAMETER | |||||||||
| M 5 | M 6 | M 8 | M 10 | M 12 | M 14 | M 16 | M 18 | M 20 | M 22 | |
| 16 mm | 0.448 | 0.743 | 1.590 | 3.211 | ||||||
| 20 mm | 0.598 | 0.812 | 1.711 | 3.411 | 4.892 | |||||
| 25 mm | 0.660 | 0.897 | 1.871 | 3.660 | 5.252 | 8.170 | ||||
| 30 mm | 0.737 | 1.010 | 2.070 | 3.912 | 5.574 | 9.690 | 10.707 | 18.657 | ||
| 35 mm | 0.804 | 1.120 | 2.271 | 4.223 | 5.974 | 10.000 | 11.416 | 16.026 | 19.608 | |
| 40 mm | 0.881 | 1.230 | 2.470 | 4.533 | 6.410 | 10.288 | 12.107 | 16.667 | 20.747 | |
| 45 mm | 0.958 | 1.340 | 2.671 | 4.840 | 6.859 | 10.504 | 12.821 | 17.241 | 21.739 | |
| 50 mm | 1.030 | 1.450 | 2.870 | 5.155 | 7.299 | 11.261 | 13.624 | 17.857 | 22.727 | 28.409 |
| 55 mm | 1.560 | 3.071 | 5.464 | 7.740 | 11.628 | 14.409 | 18.868 | 23.810 | 30.120 | |
| 60 mm | 1.670 | 3.270 | 5.774 | 8.183 | 12.255 | 15.244 | 20.000 | 25.126 | 32.051 | |
| 65 mm | 1.781 | 3.472 | 6.083 | 8.621 | 12.626 | 16.026 | 21.008 | 26.455 | 34.014 | |
| 70 mm | 1.890 | 3.671 | 6.394 | 9.058 | 12.987 | 16.835 | 22.124 | 27.778 | 35.461 | |
| 75 mm | 2.000 | 3.873 | 6.702 | 9.506 | 13.228 | 17.606 | 23.256 | 29.070 | 39.063 | |
| 80 mm | 2.111 | 4.072 | 7.013 | 10.000 | 13.889 | 18.248 | 24.510 | 30.303 | 40.000 | |
| 90 mm | 4.472 | 7.634 | 10.917 | 14.925 | 19.841 | 26.042 | 33.113 | 41.667 | ||
| 100 mm | 4.873 | 8.251 | 11.820 | 16.340 | 21.459 | 27.778 | 35.714 | 46.296 | ||
| 110 mm | 8.881 | 12.723 | 17.730 | 23.041 | 31.250 | 38.168 | 47.170 | |||
| 120 mm | 9.506 | 13.624 | 18.797 | 24.631 | 32.895 | 40.984 | 50.000 | |||
| 130 mm | 10.101 | 14.535 | 20.000 | 26.316 | 34.722 | 43.478 | 52.632 | |||
| 140 mm | 10.707 | 15.432 | 20.833 | 27.933 | 35.461 | 46.296 | 55.556 | |||
| 150 mm | 11.312 | 16.340 | 22.222 | 29.412 | 37.594 | 48.544 | 58.824 | |||
| 160 mm | 11.905 | 17.241 | 24.272 | 31.056 | 40.984 | 50.505 | 61.728 | |||
| 170 mm | 12.500 | 18.116 | 32.680 | 53.191 | 64.935 | |||||
| 180 mm | 13.123 | 19.011 | 26.882 | 34.247 | 55.556 | 67.568 | ||||
| 190 mm | 13.736 | 19.920 | 35.971 | 58.140 | 70.423 | |||||
| 200 mm | 14.327 | 20.833 | 29.586 | 37.594 | 49.020 | 60.976 | 73.529 | |||
| 220 mm | 15.528 | 22.624 | 40.650 | 65.789 | 79.365 | |||||
| 240 mm | 16.722 | 24.510 | 43.860 | 71.429 | 84.746 | |||||
| 250 mm | 17.301 | 25.381 | 45.455 | 74.627 | 87.719 | |||||
| 260 mm | 17.921 | 26.316 | 47.170 | 76.923 | 90.909 | |||||
| 280 mm | 19.157 | 28.090 | 50.505 | 81.967 | 98.039 | |||||
| 300 mm | 20.325 | 29.940 | 53.763 | 87.719 | 104.167 | |||||
| 320 mm | 31.646 | 56.818 | 92.593 | |||||||
| 340 mm | 33.557 | 60.241 | 98.039 | |||||||
| 360 mm | 35.211 | 63.291 | 104.167 | |||||||
| 380 mm | 37.037 | 66.667 | 108.696 | |||||||
| 400 mm | 39.063 | 69.444 | 113.636 | |||||||
Titanium Gr 5 Bolts are used in applications requiring high strength, corrosion resistance, and weight reduction, especially in demanding industrial and engineering environments.
Titanium Gr 5 Bolts are typically produced through hot forging followed by CNC machining to achieve precise dimensional tolerances. Thread rolling or precision cutting ensures consistent thread geometry, critical for load distribution and fastening reliability. Surface finishing processes such as polishing or anodizing enhance corrosion resistance and appearance.
Quality assurance includes dimensional inspection using calibrated gauges, tensile and hardness testing, and non-destructive testing for structural integrity. Each batch is traceable through heat numbers and inspection reports. KK Fasteners follows ISO 9001-certified processes, ensuring every shipment meets international standards and customer specifications.
Explore our comprehensive range of products, ensuring you find the perfect solution for your specific requirements.
Save money without compromising on quality, thanks to our competitive prices and cost-effective options.
Personalized assistance, prompt responses, and a commitment to meeting your needs, making your purchase process seamless.
Titanium Gr 5 Bolts are high-strength fasteners made from Ti-6Al-4V alloy, offering an excellent strength-to-weight ratio, corrosion resistance, and durability. They are commonly used in aerospace, marine, and industrial applications where performance under stress and harsh environments is essential.
Yes, Titanium Grade 5 bolts provide significantly higher tensile strength than standard stainless steels such as SS 304 and SS 316, while being approximately 40% lighter. This combination makes them ideal for applications requiring both strength and weight reduction.
Titanium Gr 5 fasteners are typically manufactured in accordance with ASTM B348, ASTM F468, DIN 931, DIN 933, and ISO 4014/4017 standards. These ensure consistent material composition, mechanical properties, and dimensional accuracy for industrial use.
They are best suited for applications requiring high strength, corrosion resistance, and lightweight characteristics, including aerospace structures, marine systems, chemical processing equipment, and high-performance automotive assemblies.
A reliable supplier should offer ISO certification, full material traceability, compliance with ASTM/DIN standards, and proven global export experience. KK Fasteners supplies Titanium Gr 5 bolts with documented quality assurance and international delivery support.
Titanium Gr 5 Bolts offer a dependable solution for critical applications where strength, weight reduction, and corrosion resistance must align. With controlled manufacturing processes and strict inspection protocols, KK Fasteners delivers fasteners that meet demanding engineering standards. For project-specific requirements or bulk supply inquiries, request a quote or connect with the technical team to discuss specifications and delivery timelines.
